Gas condensing water heaters.
High domestic hot water performance with lower energy consumption

AIC gas condensing water heaters are designed for installations requiring stable and efficient domestic hot water production under high and variable demand conditions.

Using condensing technology and stainless steel heat exchangers, the systems maintain high efficiency even during intensive operation — from apartment buildings and hotels to sports facilities and industrial applications.

Compact dimensions, fast recovery times and integration with modern HVAC systems simplify the design of efficient and reliable DHW installations.

Coilmaster

35–120 kW

Combination floor-standing condensing boiler

Floor-standing

Texas

99-230 kW

Condensing water heater with integrated storage

Floor-standing

Designed for buildings with medium to high DHW demand

Designed for installations
with high DHW demand

AIC condensing water heaters are developed for applications where continuous domestic hot water availability and fast system recovery are essential.

The systems are suitable for both new installations and retrofit projects — particularly in buildings with intensive or fluctuating DHW consumption such as hotels, sports facilities, apartment buildings and healthcare applications.

High part-load efficiency also helps maintain efficient operation outside peak demand periods.

How does Fire Tube
technology work?

Condensing DHW systems recover thermal energy from flue gases that would otherwise be lost in conventional appliances. By cooling flue gases below dew point, water vapour condenses and releases additional latent heat, improving overall system efficiency.

AIC water heaters use stainless steel Fire Tube heat exchangers where combustion gases pass through tubes surrounded by domestic water. This design provides a large heat exchange surface, stable DHW temperatures and high output even during intensive hot water demand.

The vertical tube arrangement supports natural condensate drainage and helps reduce deposit build-up, maintaining long-term efficiency while lowering maintenance requirements.

  • Thermal efficiency

    up to 104%

  • Modulation ratio

    up to 12:1

  • NOx class

    6

  • Operating pressure

    up to 6 bar

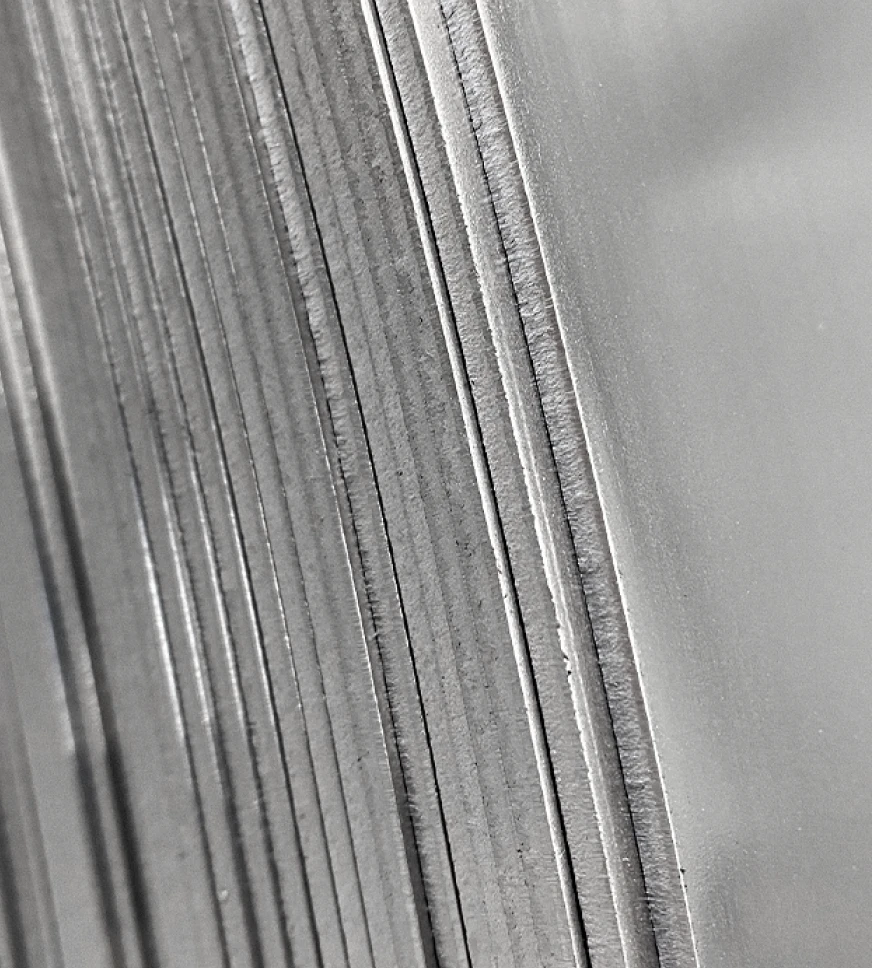

Very high
corrosion resistant
100% stainless steel construction

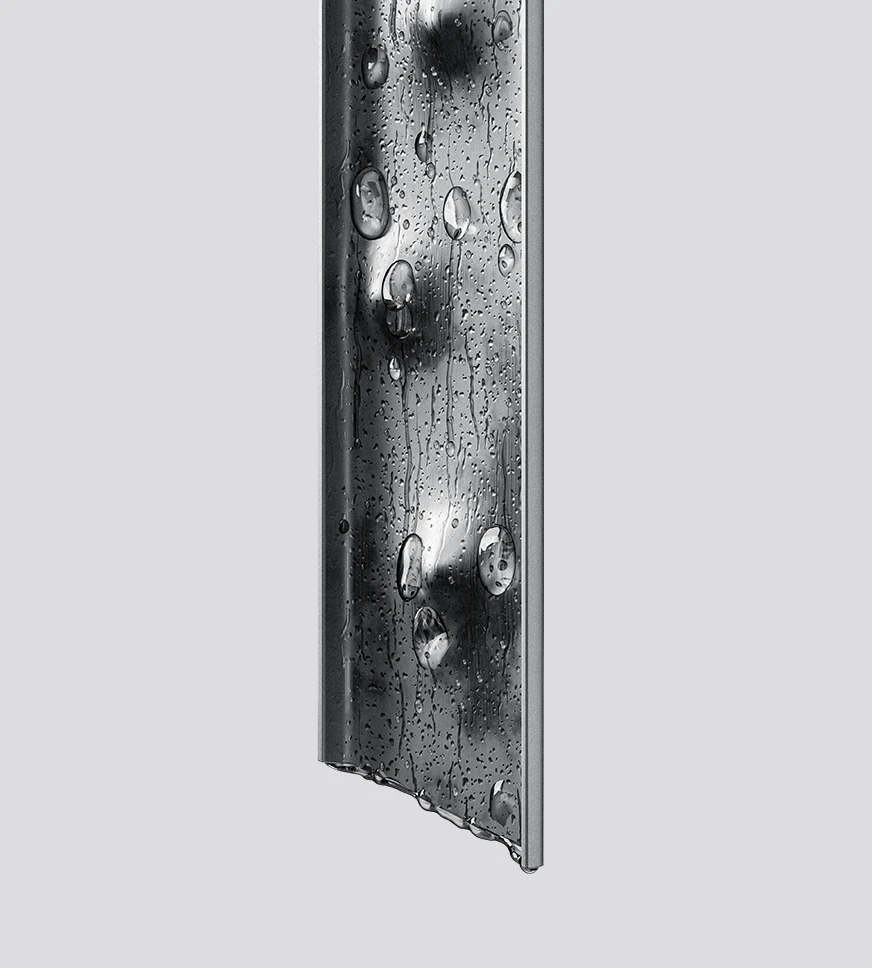

Reduced maintenance
Self-cleaning flue tubes

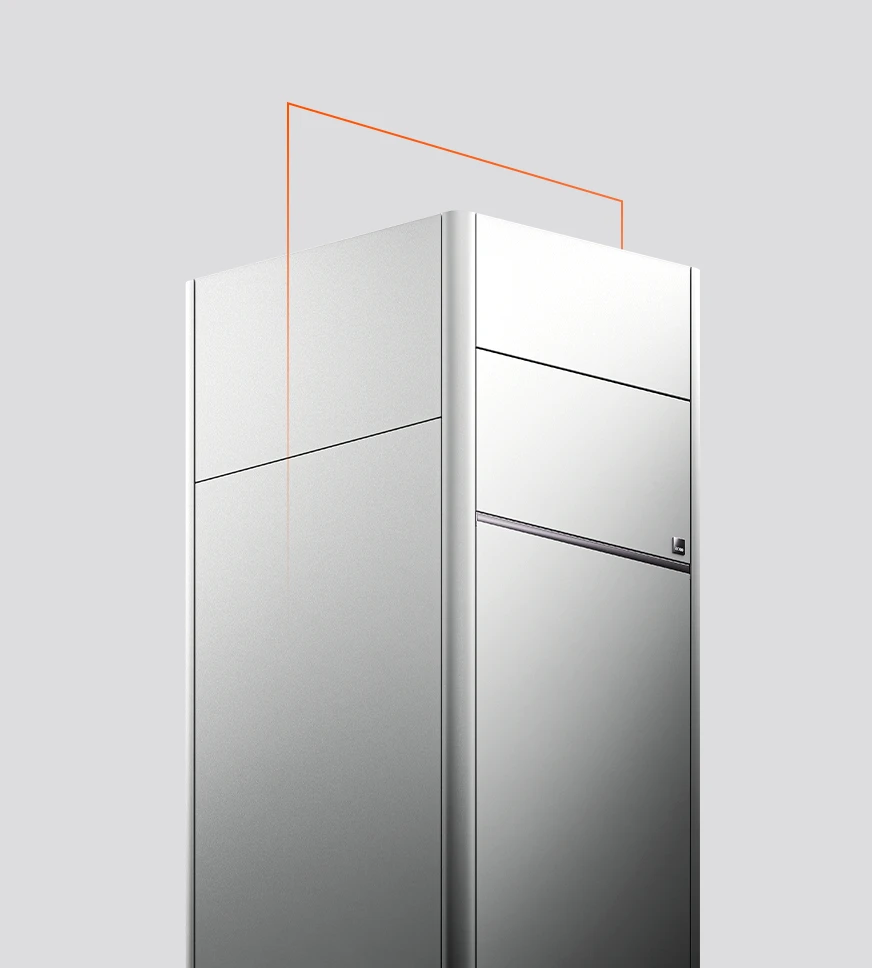

Compact dimensions
Easier installation in existing plant rooms

Condensing water heaters
vs traditional systems

Compared with conventional non-condensing appliances, condensing water heaters provide higher efficiency, lower gas consumption and more stable operation during variable DHW demand.

Fire Tube technology also improves durability and heat transfer performance, which is especially important in facilities operating under high and uneven hot water loads.

Compared with electric systems or large storage-based solutions, gas condensing water heaters offer high DHW output, fast recovery times and compact plant room requirements.

  • Parameter
    AIC Condensing Water Heaters
    Traditional Non-Condensing Water Heaters
  • Seasonal efficiency
    High
    Medium
  • Partial load operation
    Stable
    Reduced
  • Scalability
    Excellent
    Limited
  • Plantroom space
    Compact dimensions
    Large footprint
  • Output density
    High
    Medium
  • Domestic hot water (DHW) performance
    High
    Lower
  • Plant room footprint
    Compact
    Larger
  • Integration with existing systems
    Very good
    Good
  • DHW temperature stability
    High
    Limited
  • Appliance durability
    Long service life
    Shorter lifecycle
  • Recovery Time
    Fast
    Longer

FAQ

Fire Tube technology uses a heat exchanger where hot combustion gases pass through tubes surrounded by water. The heat is transferred through the tube walls while condensation recovers additional energy from flue gases.

Yes. Condensing water heaters are widely used in hotels, apartment buildings, sports facilities, healthcare applications and industrial DHW systems with high hot water demand.

Yes. Wide modulation ranges help maintain high efficiency even when domestic hot water demand changes throughout the day.

Yes. AIC systems are designed for continuous operation in applications with high and fluctuating domestic hot water consumption.

Thanks to stainless steel construction and self-cleaning heat exchanger operation, maintenance requirements are reduced compared with traditional water heating systems.

Yes. Selected AIC systems support BMS integration and remote monitoring functionality.
