Hybrid System — High power
multi-energy hybrid system
Our commitment
to a greener future
The term ‘hybrid’ refers to an appliance or installation that combines at least two different energy sources and whose operation is managed by one control. The most common option is a hybrid system which combines an electric heat pump with a condensing boiler.

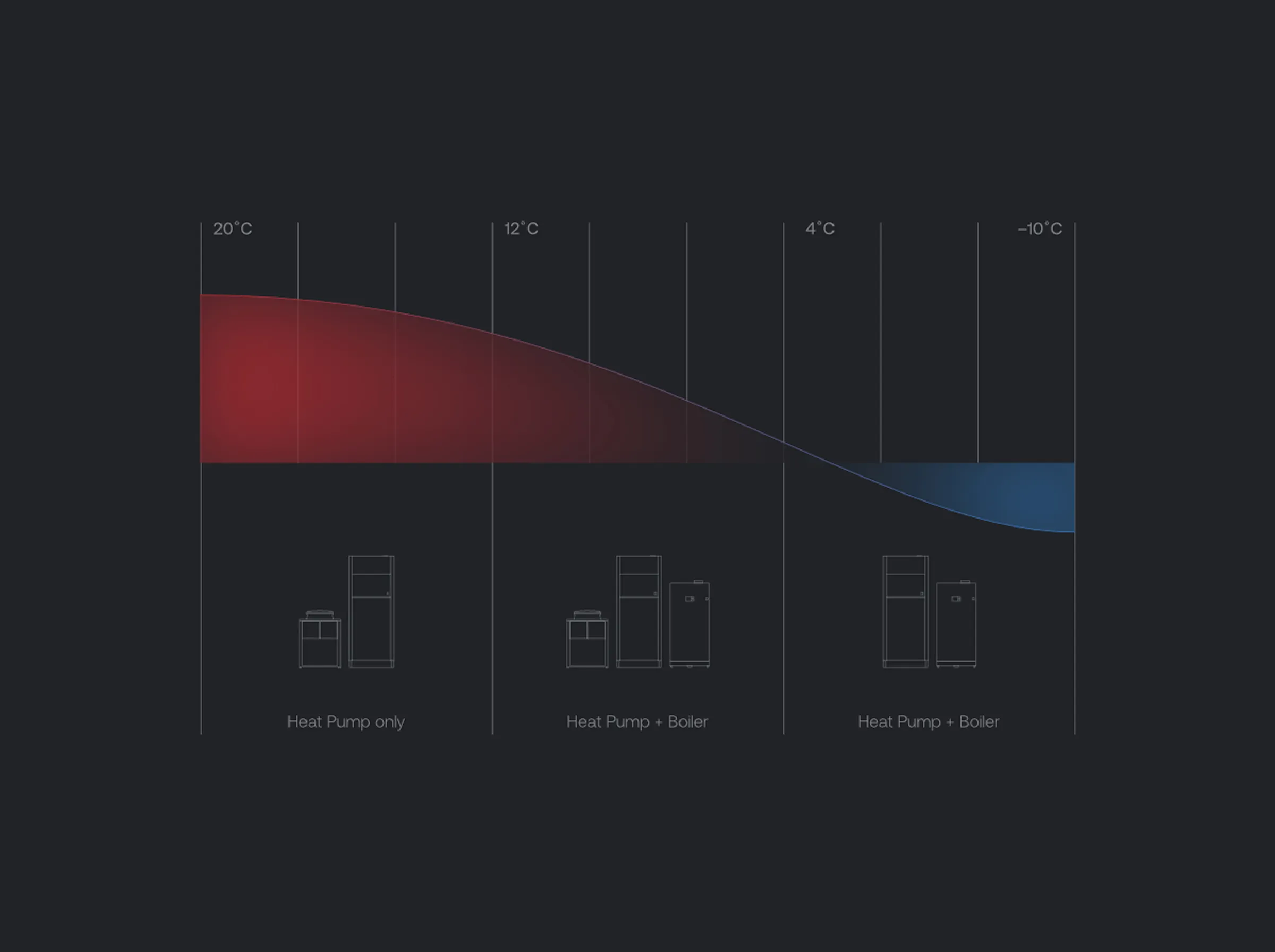

The option of drawing from different technologies makes hybrid systems very efficient; depending on your building's insulation value, the installation will respond to demand, generally running the heat pump during spring and autumn seasons. It will then employ the condensing boiler during the coldest days of the year for maximum comfort.
Tailored hybrid solutions for demanding
residential, commercial, and industrial
applications
- Single-family houses,
- Small clinics,
- Nurseries,
- Hairdressing salons,
- Restaurants,
- Cafés,
- Car washes
150-2000 m2
- Schools,
- Medium-size hotels,
- Office buildings,
- Sports facilities,
- Wellness centers
2000–5000 m2
- Large hotels,
- Hospitals,
- Public buildings,
- Swimming pools,
- Light industrial facilities
5000–15000+ m2
Factory Made
system configurations

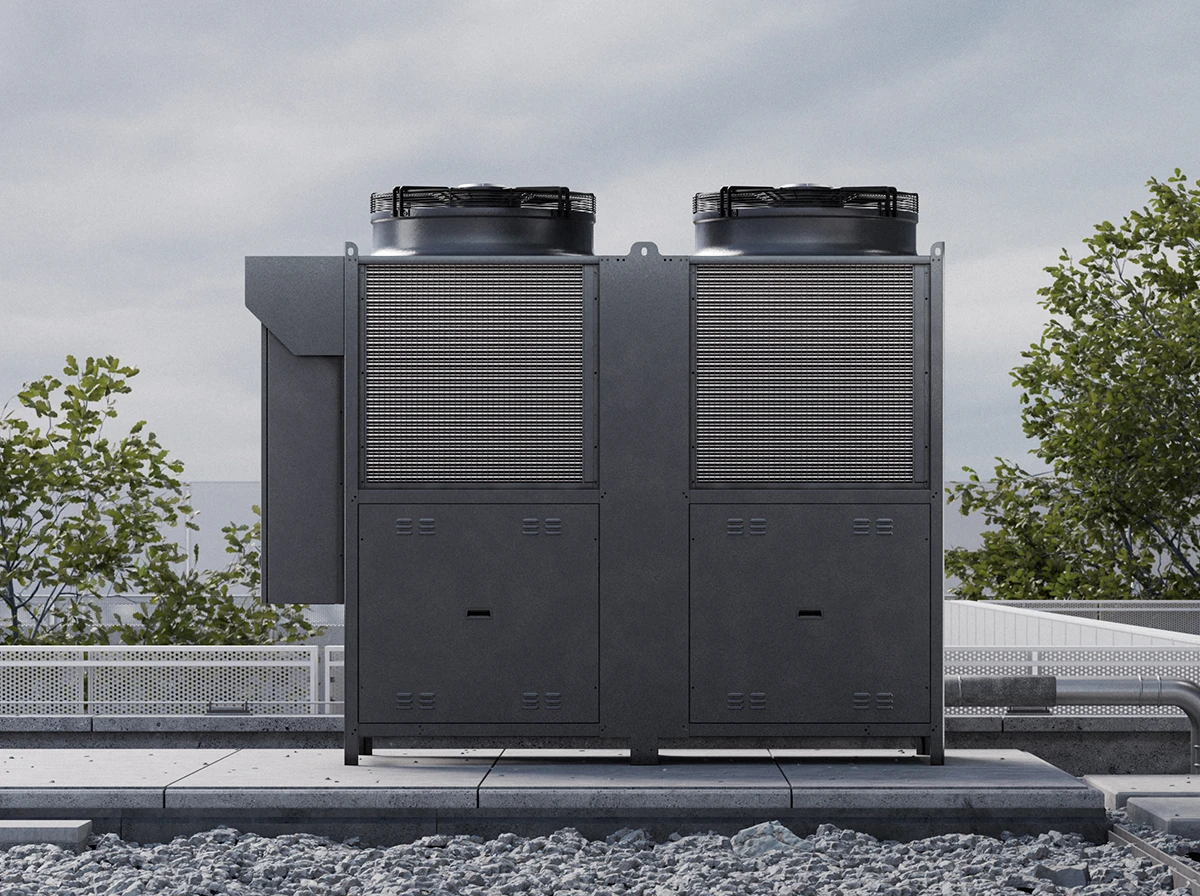

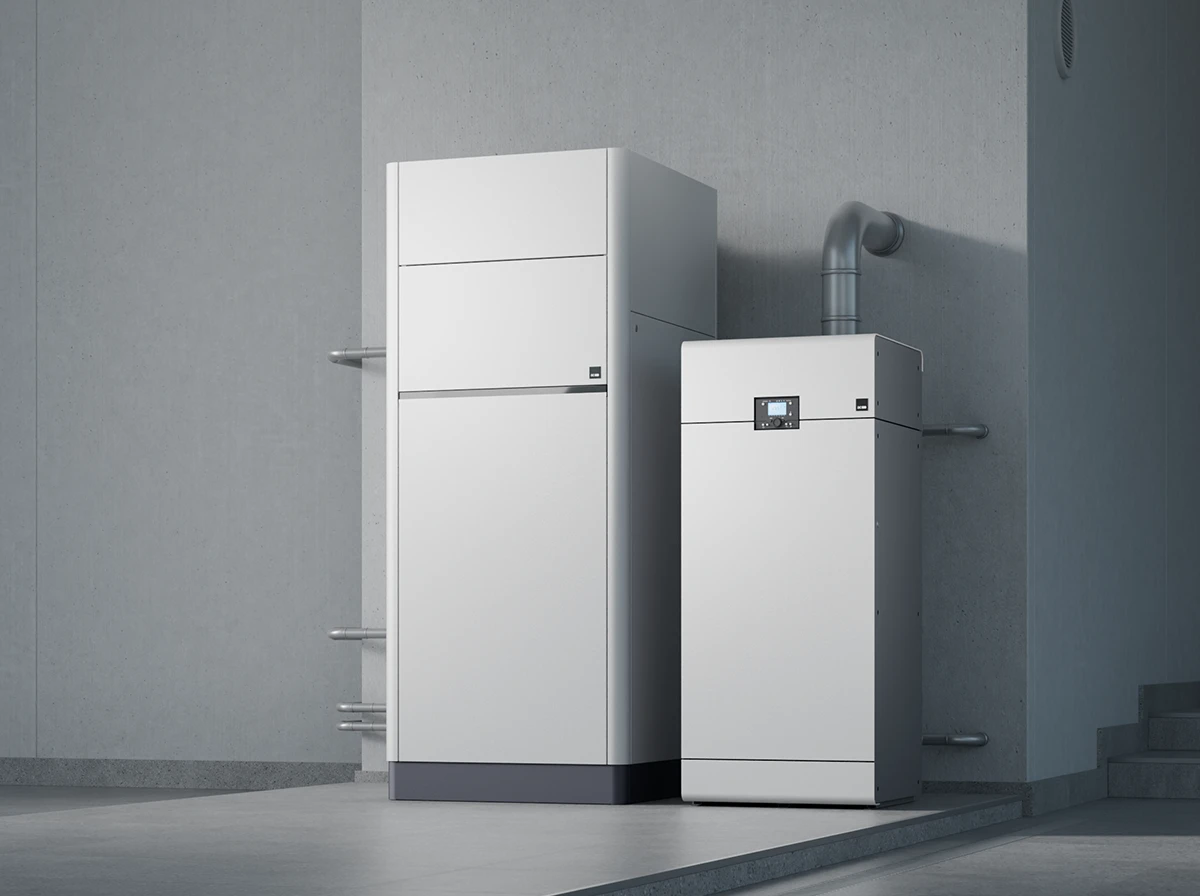

The system consists of an Aurax Eco heat pump combined with a high-power condensing boiler (single or cascade), managed by a TMU – Thermal Control Unit with integrated stratified stainless steel storage tank.
Efficienty in DHW Mode
up to 108%
Efficiency in Heating mode
up to 104%
Modulation ratio
up to 10:1
Corossion resistance
100% stainless steel

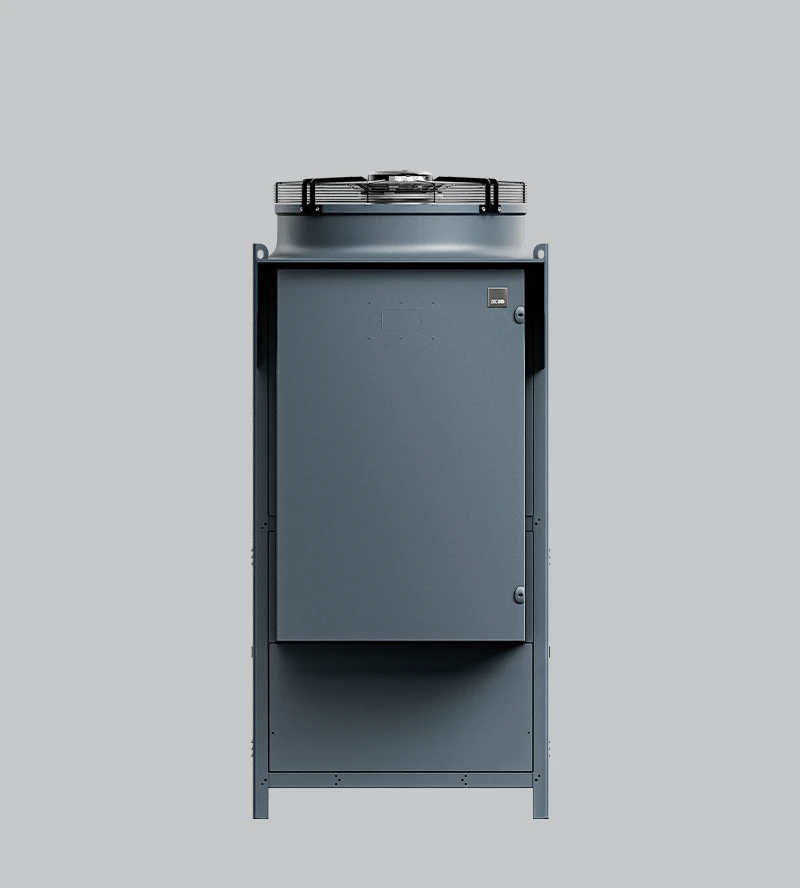

- Heat Pump
Aurax Eco 25.1
Aurax Eco 38.1
Aurax Eco 45.1
Aurax Eco 55.1

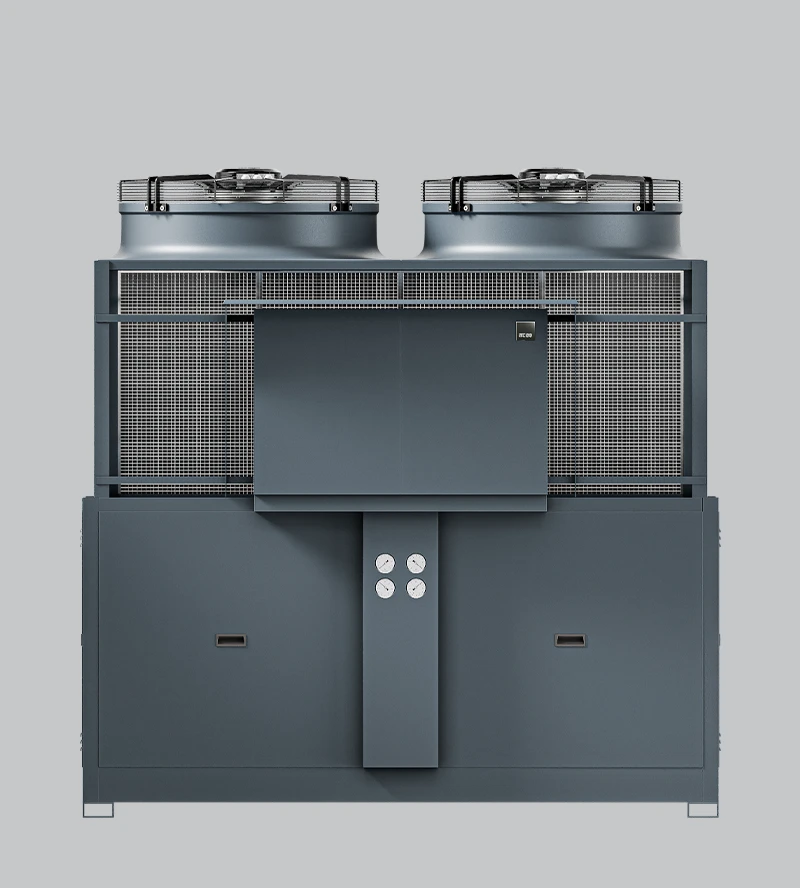

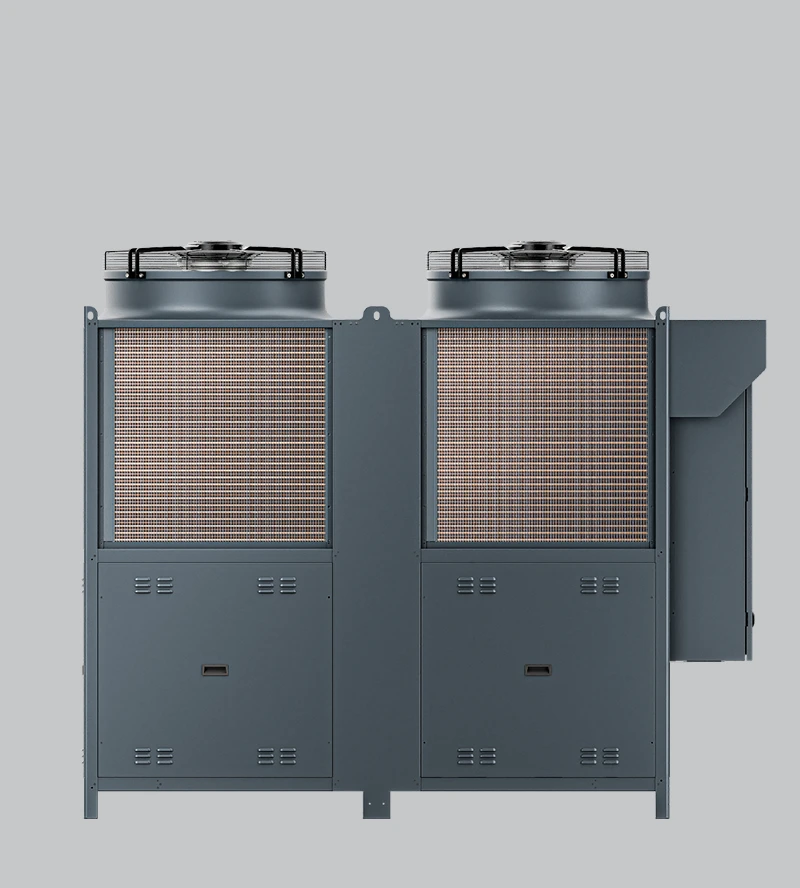

- Heat Pump
Aurax Eco 68.2
Aurax Eco 74.2
Aurax Eco 86.2
Aurax Eco 106.2
Aurax Eco 114.2
- Heat Pump
Aurax Eco 150.1

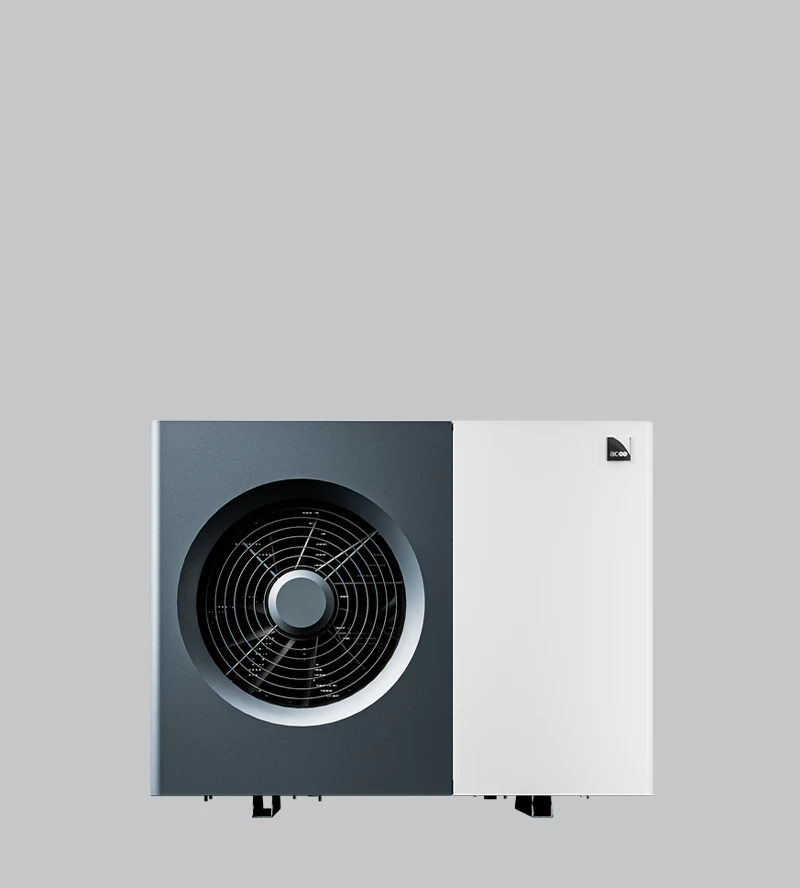

- Heat Pump
Aurax Mini 10
Aurax Mini 15
Aurax Mini 20
Aurax Mini 25
Aurax Mini 35
Aurax Mini 40
- Discover our
heat pump solutions - See products
- TMU
TMU 500
TMU 800
- Boiler
Nesta Chrome 60
Nesta Chrome 80
Nesta Chrome 100
Nesta Chrome 120
Nesta Chrome 150
- Boiler
2 x Nesta Chrome 60
2 x Nesta Chrome 80
2 x Nesta Chrome 100
2 x Nesta Chrome 120
2 x Nesta Chrome 150
3 x Nesta Chrome 150
- Boiler
Nesta 120
Nesta 160
Nesta 200
Nesta 250
Nesta 300
- Boiler
Nesta Plus 350
- Boiler
CoilMaster 60
CoilMaster 80
CoilMaster 100
CoilMaster 120
- Discover our
heat pump solutions - See products
- Explore our full
condensing heating offer - See products

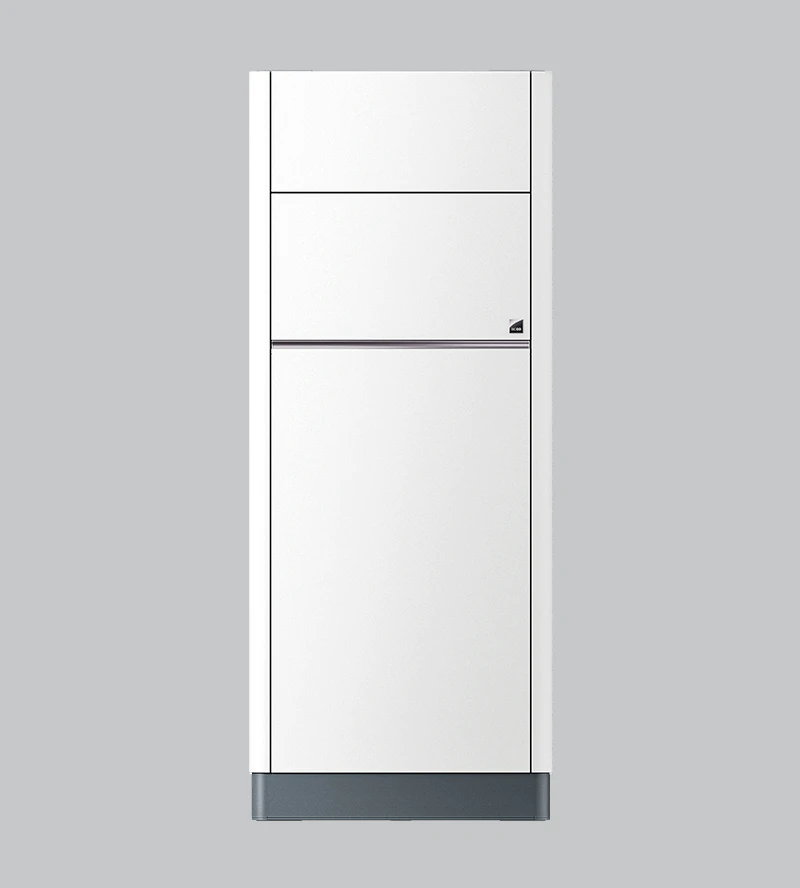

The Thermal Control Unit with integrated
storage and stratification — the brain of the
AIC Hybridos system
The TMU is equipped with a special separation diaphragm that optimises the alternating or parallel operation of the available heat generators. The position and size of the hydraulic connections in the stainless steel unit have been designed to maximise the contribution of the heat pump and the stratification of the system.
A separation diaphragm ensures efficient generator operation, while the stainless-steel unit with optimised hydraulic connections maximises heat pump contribution and system stratification.
Alternating operation Heat Pump only
The heat pump heats the lower part of the TMU. Hot water stratifies upwards and supplies the system.
Parallel operation Heat Pump and Boiler
The heat pump preheats the lower section. The boiler heats the upper part if needed, near system delivery — each source works where it’s most efficient.
Alternating operation Boiler only
The boiler heats only the upper section, minimizing water volume at high temperature.
- Environmentally
friendly - Reduced polluting emissions

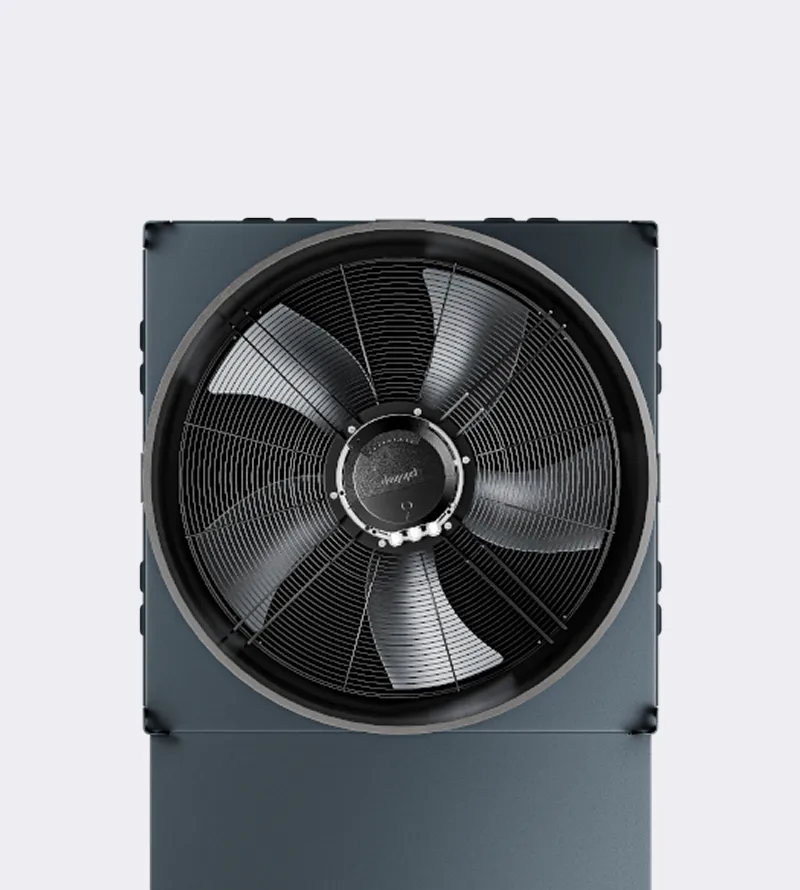

- Continuity of service
- Guaranteed renewable
energy contribution
- Tax deductions
- up to 65% in selected EU
countries
